KPal K5 Group - A Full Layer & Bulk Robotic Palletizing System
Flexible and Reliable Palletizing Solutions for Glass or Plastic Containers and Cases
Kaufman's K5 Group of palletizers is designed specifically for full-layer and bulk palletizing needs. This series features a tier formation area that organizes products before palletizing. This process provides a unique combination of control and product flexibility.
- Containers: The K5 Group excels at effectively palletizing and depalletizing plastic or glass bottles. The bottles are laned into position, and, using our K5 end-of-arm tool (EOAT), large quantities of containers can be palletized in a single movement.
- Cases: The K5 Group has a dedicated tier formation area that arranges products in the proper orientation to build the load for maximum stability.
- Trays & Bundles: Products are palletized onto display-ready pallets. The K5 tier formation area can robotically orient products with the correct side out, which is important in the retail market. The K5 tool picks up an entire tier of products or a tier of multiple bundle-packaged products to palletize layers rather than placing individual cases or bundles.
Consider reviewing the following content for more information:
Join Our Mailing List
Request Quote
KPal Series of Palletizing Solutions
KPal Core Group
KPal KP1 Group (Full Layer)
KPal Compact group
KPal Collaborative Group
KPal Stack & Wrap Group
KPal DEpalletizer Group
Features & Options
Configuration Examples
videos
Discover what Kaufman Engineered Systems can do for your business. Contact our award-winning account managers today for a consultation: info@KES-USA.com or 419-878-9727.
Standard Features
- Allen Bradley Components, including CompactLogix, ControlLogix, GuardLogix PLCs, Powerflex 525 Drives, and Panelview Interface Screens.
- FANUC Robots.
- Full layer sweep capability (44 x 56 & 40 x 48).
- Servo belt-driven drawer.
- Ultrasonic sheet sensing.
- IR vision.
- Fortress "T" guard trapped key gate switches.
- Smartscan light curtains.
- Axelent safety fencing and access gates.
- Ultrasonic sensing for dunnage
- Servo driven
- KES risk assessment.
- CAT-3 electrical safety circuit with dual-channel self-checking relay.
- 24/7 Support.
Additional Options

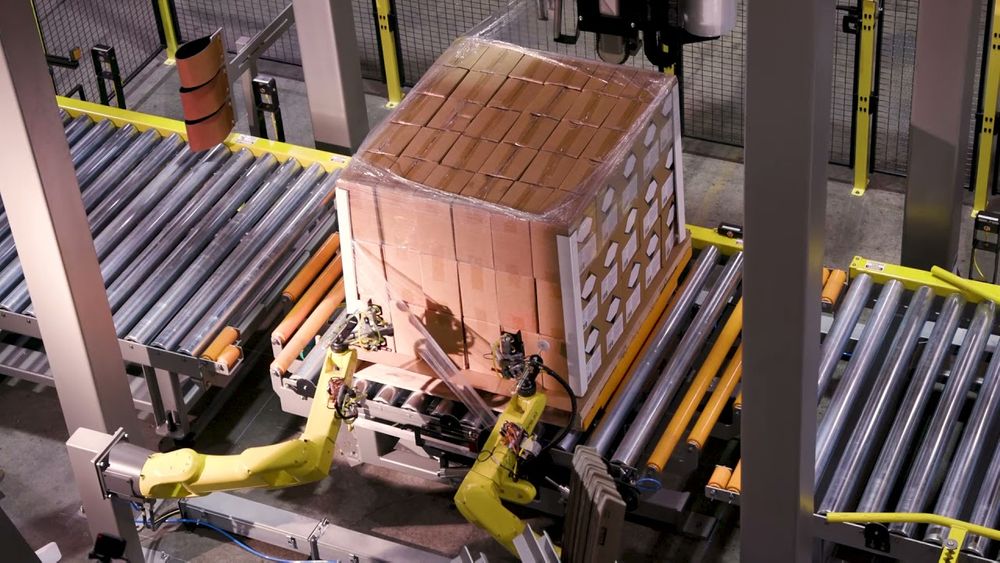

- KRL1 robotic labeler for application of labels to unit loads.
- Infeed conveyance systems and spiral conveyors to deliver products to the palletizer.
- Complete line of unit load conveying equipment including roller conveyors, chain conveyors, mattop conveyors, transfer cars, turntable conveyors, and chain transfers.

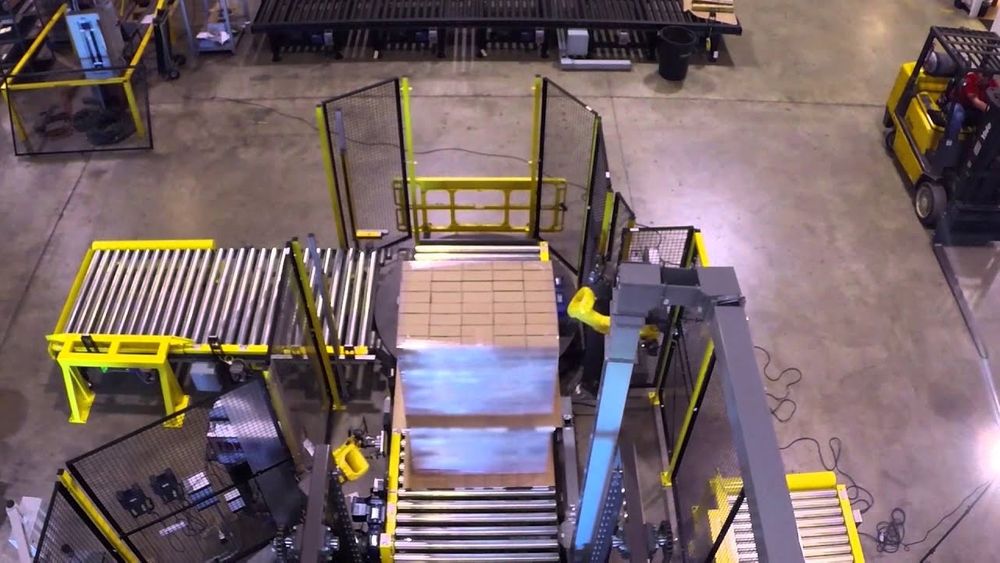

- Complete line of KES stretch wrappers.
- Ross automatic air dump valves.
- System pre-wire package with NEMA-12 wireway.
- FANUC ZDT - Zero Downtime Monitoring.
- Panel heating/air conditioning.
- Zone disconnects.
- Robot servo disconnects.
- Local motor disconnects
- Barcode scanning.
- 2D/3D camera
- Field installation using KES install teams.
- System start-up using KES factory-trained technicians.
- Field service by KES factory-trained technicians.
- Safety validation by Rockwell.
- UL 508A listed control panel.
Configuration Examples
These images are representations of how each system might be laid out. The actual configuration of each system is customized based on the unique needs of each customer.
KPal K5 Group Videos
View our Channel

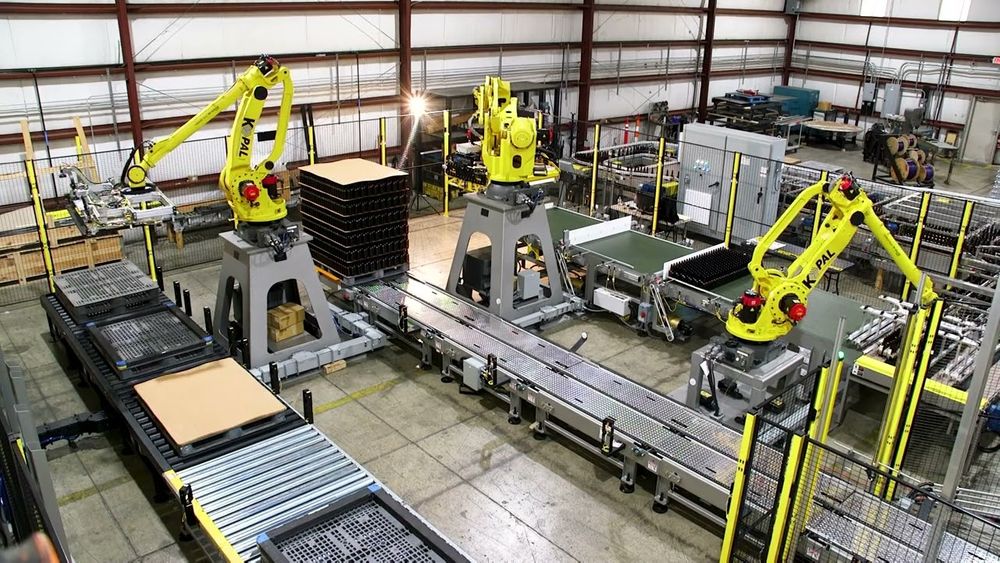

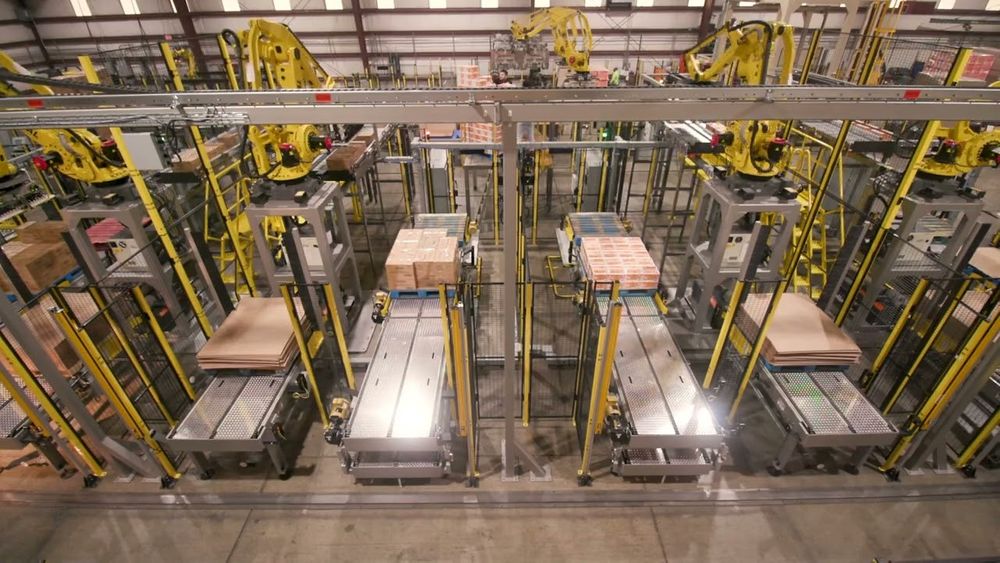

KPal K5 Full Tier Case Palletizing SystemClick Here to Open Full Screen

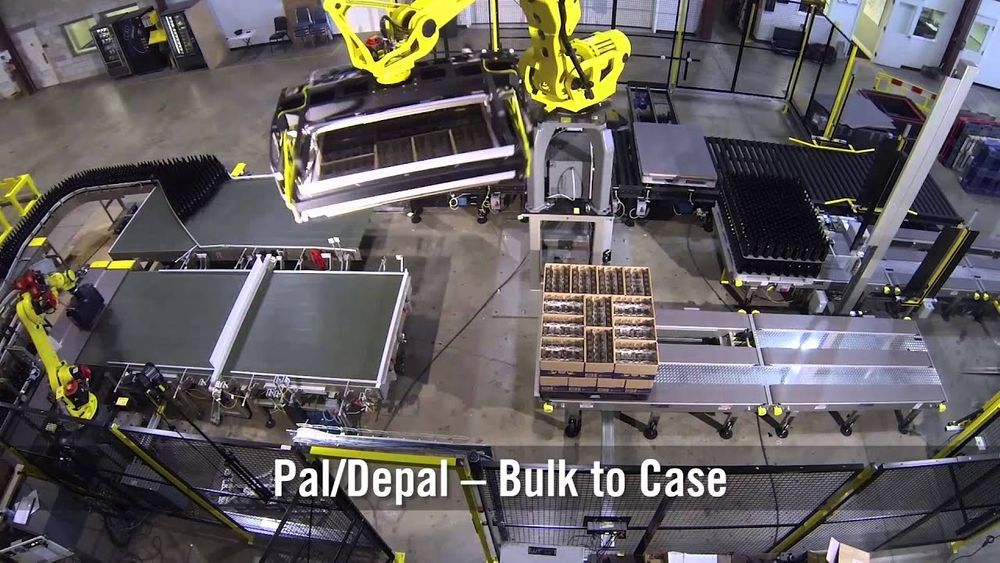

KPal Full Layer Bulk System Depalletizing and Palletizing Glass BottlesClick Here to Open Full Screen

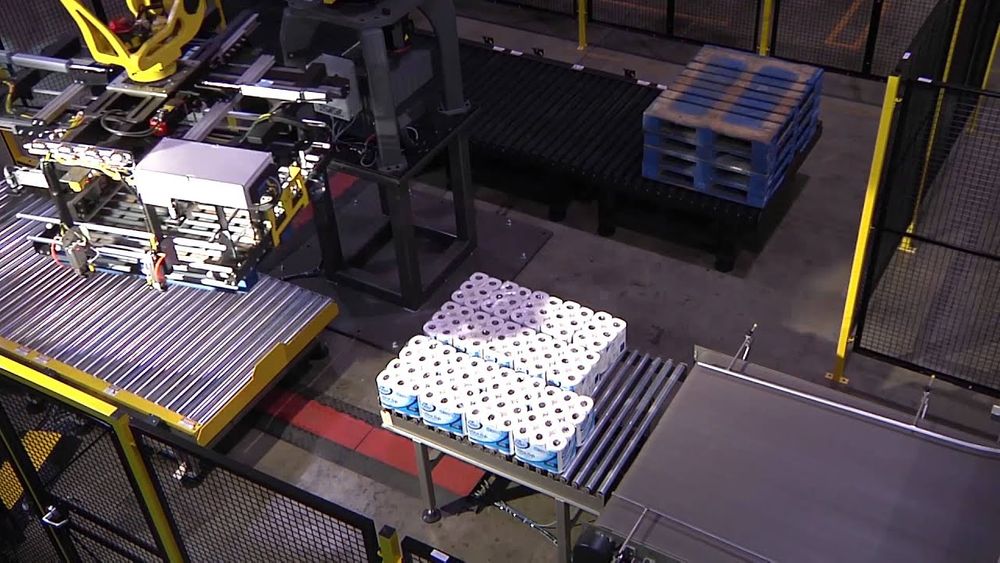

KPal K5 Depalletizing Plastic Containers, Then Palletizing The Bundled ContainersClick Here to Open Full Screen
KPal K5 Palletizing & Depalletizing with Lights Out FunctionalityClick Here to Open Full Screen

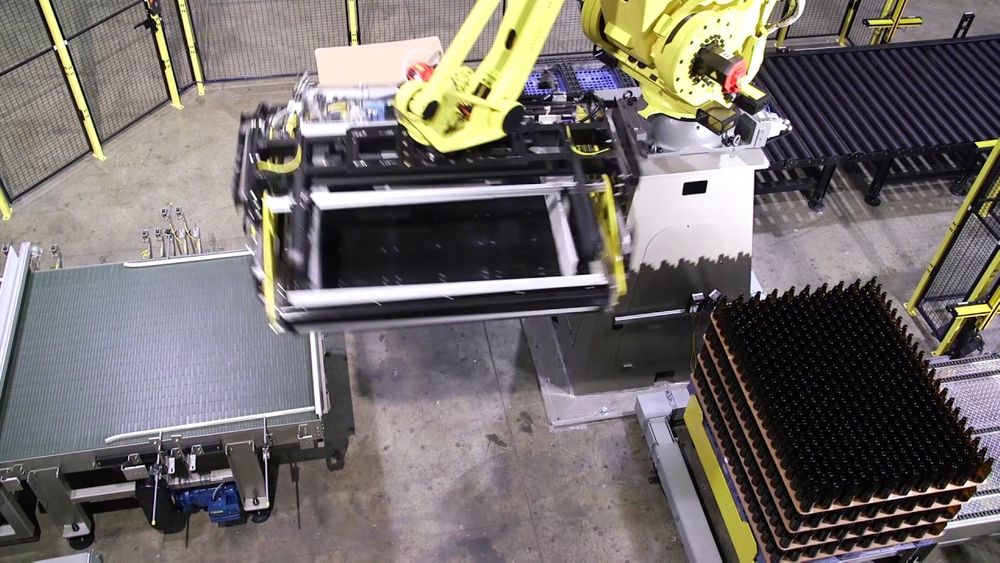

KPal K5 Full Layer Glass Depalletizing SystemClick Here to Open Full Screen

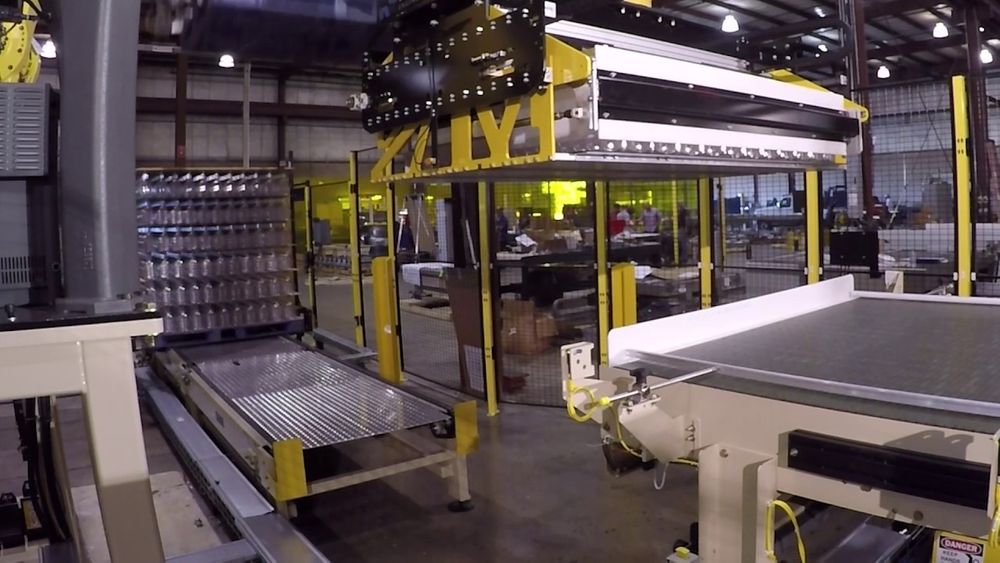

KPal Full Layer Bulk Palletizing for Plastic BottlesClick Here to Open Full Screen
KPal K5 Full Layer Bulk Glass Bottle Palletizing SystemClick Here to Open Full Screen
Video Training
Solving Your Training and Onboarding Obstacles
ALL NEW! Kaufman Engineered Systems is now offering custom designed training videos on your new equipment. These videos are a great tool for new hire onboarding and as an existing employee refresher course. They provide your team with as much detail and knowledge on your equipment as if a Kaufman technician is on-site, by your side training you.
Learn More
Our Robot Line Integration Expertise
In 1995, Kaufman Engineered Systems designed and released its first robotic EOAT (end-of-arm tool) for bulk palletizing glass and plastic containers. The goal was to build a tool that could accommodate palletizing a full layer of containers and distribute dunnage, including pallets, tier sheets, and top frames. 30+ years and numerous revisions later, the patented Kaufman K5 EOAT is a simple yet effective solution for palletizing a wide range of products, including cases, trays, bundles, and containers.
Combining the K5 EOAT with Kaufman’s 80+ years of material handling and stretch wrap equipment offerings, along with over 30 years of partnership with FANUC Robotics, we offer complete end-of-line system solutions. Kaufman Engineered Systems is the designer, manufacturer, and integrator. Our Kaufman team installs, starts up, and services your new system at your facility. This provides our customers with a single point of contact and a single company they can rely on to execute the project.
Service and Support
As a level five Authorized Systems Integrator for FANUC Robotics, FANUC's highest level of attainment, Kaufman Engineered Systems applies FANUC robot technology to provide customers with complete end-of-line system solutions.
The solution may be as simple as a dedicated palletizing cell or as complex as a multi-line handling and palletizing system. No matter how big or small, Kaufman Engineered Systems will address each project and customer with the same integrity and professional response.
With each KPal system comes Kaufman Engineered Systems service and support. Backed by over 80 years of serving customers, Kaufman is a partner you can rely on to respond quickly and efficiently when having service needs. With your KPal palletizer, you can choose from service options for quarterly, semi-annual, or annual maintenance support with Kaufman Qualified Technicians.
Kaufman Engineered Systems KPal Series Palletizers. Let us help you become a new member of our family. We look forward to working with you.
